Using CLR functions with T-SQL


Why use CLR?
Before using CLR, you should question ‘Why’. When using CLR functions within T-SQL, you have to maintain two different programming environments, unless what you gain worth more than having it.
We need to use the CLR functions when occasions such as:
When we have to access system resources like file system or network (**Extended stored procedures can do the same. But they are deprecated and will be removed from future versions of SQL)
Or when the business logics are too complex to write in T-SQL, which can be easily done using .net languages (Reusing the logics already written, without duplicating them using T-SQL)

To illustrate this I will create a CLR function which will create a text file and append the text which is passed from a T-SQL statement.

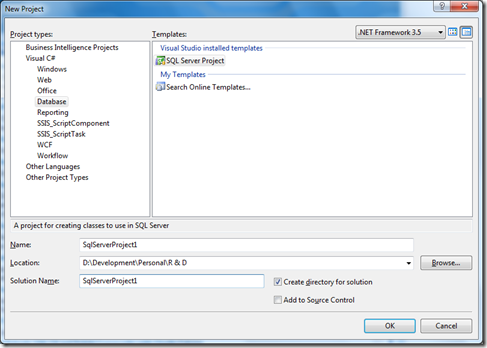

Open Visual studio and create a new ‘SQL Server Project’
img_scr_001

Next dialog you will be prompted to select the database which you plan to deploy your extension. You can either select from existing or connect to a different one.
img_scr_002

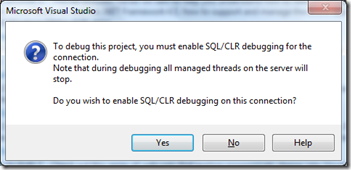

In next screen you will be prompted, whether you want to debug your .net coding. Select ‘yes’ or ‘no’ depending on your requirement.
img_scr_003

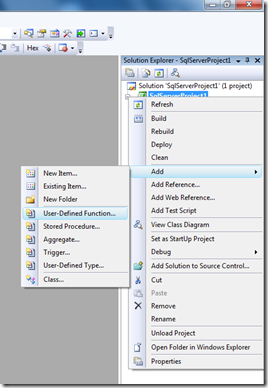

Right click on the newly created project and add new user-defined- function
img_scr_004

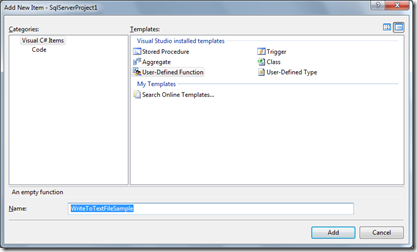

I have named it as ‘WriteToTextFileSample’.
img_scr_005
Use the following code:
using System;
using System.Data;
using System.Data.SqlClient;
using System.Data.SqlTypes;
using Microsoft.SqlServer.Server;

using System.IO;
using System.Text;

public partial class UserDefinedFunctions {
[Microsoft.SqlServer.Server.SqlFunction]
public static SqlString WriteToTextFileSample(string filename, string data) {
FileStream fs = File.Open(filename, FileMode.Append);
byte[] b = new UTF8Encoding(true).GetBytes(data);

fs.Write(b, 0, data.Length);
fs.Close();

return new SqlString("Completed");
}
};

**The functions should be 'public static' and all the functions should have '[Microsoft.SqlServer.Server.SqlFunction]' attribute or you will not be able to call it from SQL.


Go to the project properties and change the ‘Permission Level’ to ‘Unsafe’ in Database section. (This is only required if you are performing tasks such as writing to files, accessing system related resources. You do not need this if you are performing calculations, etc..)

Save your project. Before deploying this you have to enable the ‘clr  enable’ to ‘1’. Use the following T-SQL statement to do so.

sp_configure 'show advanced options', 1;
GO
RECONFIGURE;
GO
sp_configure 'clr enabled', 1;
GO
RECONFIGURE;
GO

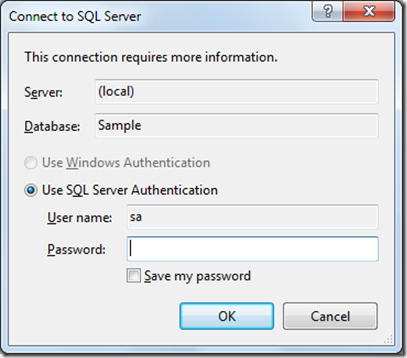

Once executed, deploy the project (Build—> Deploy Solution). You will be prompted with the SQL credentials.

img_scr_006

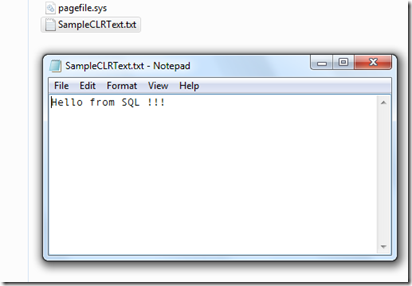

Once it’s deployed successfully use the following sample statement to use the function which we have created.

select dbo.WriteToTextFileSample(
N'D:\SampleCLRText.txt',
N'Hello from SQL !!!'
)


img_scr_007
