How to display distinct data from a duplicated data source in an InfoPath form

Sometimes we have to get data to our InfoPath forms from various sources. (From SQL Table, using a Web Service, from a SharePoint list etc..)

But most of the it’s really annoying, if you do not have the option of filtering them directly from the backend (so all the duplicated data will be displayed).

For this example I will be using the following SQL table with duplicated data.

img_scr_001

So when I connect and retrieve data to an InfoPath form. I will get the following result. (I am using an InfoPath list box to display the data). And if you note, you can see various duplicated values are there in the list.

img_scr_003

And I have used the following connection to retrieve data.

img_scr_002

We can eliminate the duplicated values by applying the following filter to the list box. To do that follow these steps:

  • Right click on the list box and select ‘List Box Properties’

img_scr_004

Click on the ‘Select XPath’ button in front of Entries field.

img_scr_005

Click on the filter button on the next screen.

img_scr_006

And add the following filter:

not(. = ../preceding::<XPath>)


‘<XPath>’ is the data source entry of your list box control. To find the XPath, right click that data field and select ‘Copy XPath’.


In my example the XPath is:


/dfs:myFields/dfs:dataFields/d:temp_table/@Name


But since I am referring to it from ‘/dfs:myFields/dfs:dataFields/’ branch, it should be omitted and only ‘d:temp_table/@Name’ is required.

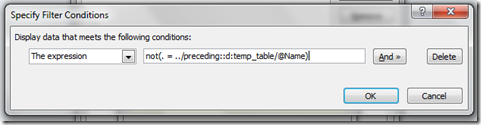

So the filter should be :


not(. = ../preceding::d:temp_table/@Name)

img_scr_007

Click ‘OK’ on all dialogs and close them. And when you preview your form, you can see only the distinct values.


img_scr_008









Hope this will help you.. Smile
