Problem with connecting to the SQL Server database on development machine from the Pocket PC Emulator using Visual Studio 2008 - Resolved

When developing application for Smart Devices, we usually debug it using the Emulators which was provided by the Visual Studio installation. And one of the difficulties that we come across is when we try to connect our Smart Device to the SQL Server which is in our development machine.
    ** For this example I will be using Visual Studio 2008 and SQL Server 2008
Here are the steps for resolving that issue:
1. First of all download and install the Virtual PC. Because this is required to set up the Virtual Machine Network Driver for Microsoft Device Emulator (http://go.microsoft.com/fwlink/?linkid=46859). The installation process is a pretty straight forward one and make sure that the Visual Studio IDE or the Smart Device Emulator is not running.

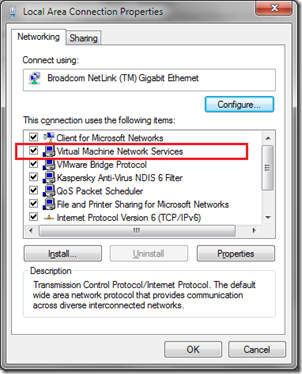

2. From network settings, right click on the Local Area Network (Network Connection) and select Properties and make sure that the Virtual Machine Network Services option is checked
img_01_network_properties

3. For this I will be using the sample “Adventure Works Database”, and it can be downloaded from the CodePlex community site (http://msftdbprodsamples.codeplex.com/releases/view/37109)

4. Open Visual Studio IDE. Create a new Smart Device project. Use any name (Here I have used SampleSmartDeviceApplication) and select required framework from the list (I have chosen 3.5)
img_02_new_project_visual_studio_2008

5. Choose the target platform, .NET Compact Framework and the Template from the next screen. I have chosen “Pocket PC 2003”, “.Net Compact Framework Version 2.0” and “Device Application”.
img_03_target_platform_framework


6. In Visual Studio IDE open Tools—>Options. And from the window select Device Tools—>Devices and choose your device (I have chosen Pocket PC 2003 SE Emulator)
img_05_device_tools_options

7. Click on the properties button and from the device properties window, select “TCP Connect Transport” as the Transport and click on the Configure… button.
img_06_smart_device_emulator_properties
8. And use select the option “Use specific IP address” and type an appropriate IP address. (I have typed 192.168.0.190 since my development machine IP address is 192.168.0.198)
img_07_configure_tcp_ip_transport

9. Click ok and close the TCP/IP Transport window. Click on the Emulator button. And from the Emulator Properties window select the Network tab and check on the “Enable NE2000 PCMCIA network adapter and bind to” and select your network adapter.
img_08_configure_emulator_properties
10. Click the ok button and close the window. And click on the ok button and close the Smart Device Emulator properties window. Click on the OK button and close the Options window.
11. Add a button (button1) and a Grid (dataGrid1) to the form. And add the “System.Data.SqlClient” reference to the project.
img_04a_controls_added_to_form
12. Double click on the button and add the following code.


    string zCon = "Password=blogpassword;Persist Security Info=True;
    User ID=bloguser;Initial Catalog=AdventureWorks;
    Data Source=192.168.0.198\\sql2k8";
    SqlConnection objCon = new SqlConnection(zCon);
    objCon.Open();
    SqlCommand objCommand = new SqlCommand("select ProductID,Name,ProductNumber from Production.Product", objCon);
    DataSet dsData = new DataSet();
    SqlDataAdapter da = new SqlDataAdapter(objCommand);
    da.Fill(dsData);
    dataGrid1.DataSource = dsData.Tables[0];
    objCon.Close();

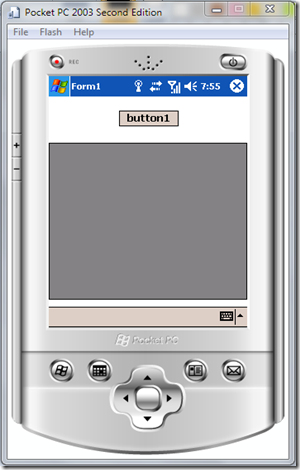

13. Run the application and select Pocket PC 2003 SE Emulator and click on deploy.


img_04b_run

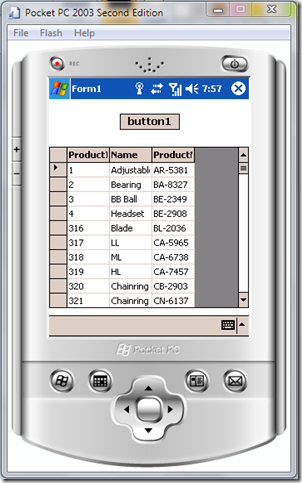

14. Click on the “button1”. Then you get the following results.


img_04b_run_a
